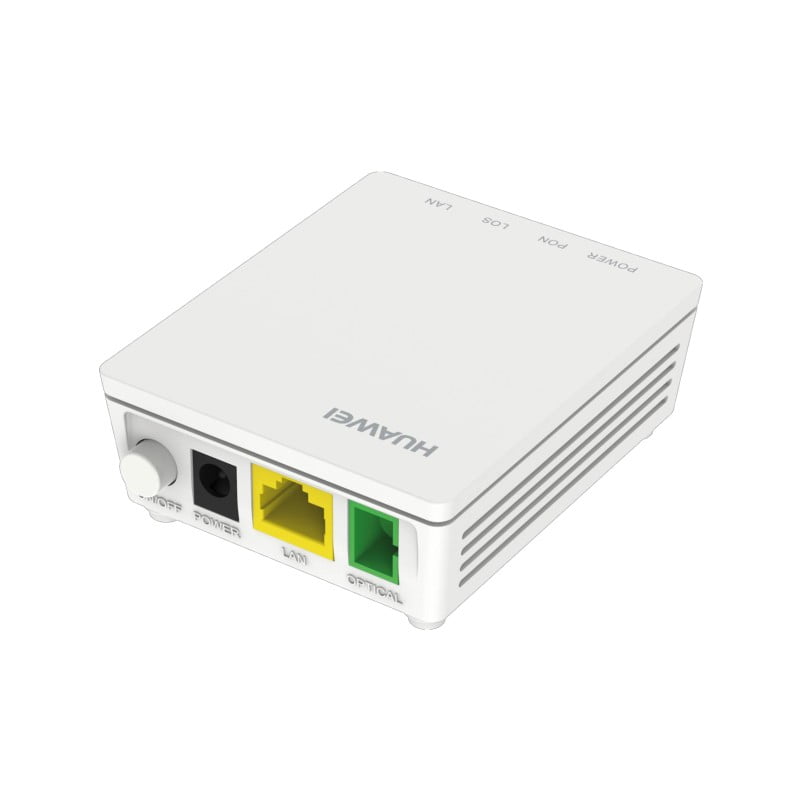

Huawei EG8010H CE SC/APC

Opis produktu

Huawei EG8010H to podstawowy terminal przeznaczony do sieci GPON. Posiada 1 port GPON SC/APC, oraz 1 gigabitowy port Ethernet.
Specyfikacja:

• Porty etherhet - 1 x Gigabit
• Porty GPON - 1 x SC/AP
• Wymiary - 83 x 69 x 28 mm
• Waga - 70g
• Zasilanie - 12V (0,5 A)
• Pobór mocy - 2-3,6 W
• Diody - POWER/PON/LOS/LAN
• Temperatura pracy - 0°C – 40°C
• Wilgotność podczas pracy - 5% do 95% (względna, bez kondensacji)
• Smart O&M
  • Variable-length OMCI messages
  • Active/Passive rogue ONT detection and isolation
  • PPPoE/DHCP simulation testing
  QoS
  • Ethernet port rate limitation
  • 802.1p priority
  • SP/WRR/SP+WRR
  • Broadcast packet rate limitation
  • Flow mapping based on the VLAN ID, port ID, or/and 802.1p
  Power Saving
  • Indicator power saving
  • Power consumption reduction of idle components in power-saving state
  • COCv4
  Security
  • MAC address filtering
  Common O&M
  • OMCI/Web UI
  • Dual-system software backup and rollback
  • 802.1ag Ethernet OAM
  • Optical link measurement and diagnosis
  • Loopback check
  Multicast
  • IGMP v2/v3 snooping
  • MLD v1/v2 snooping
  • Fast leave
  • VLAN tag translation, transparent transmission, and removal for downstream multicast packets
  • IGMP/MLD protocol packet rate limitation
