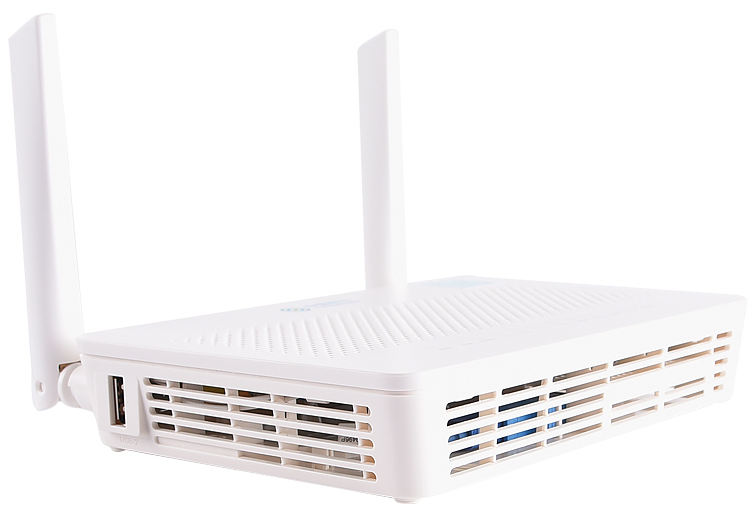

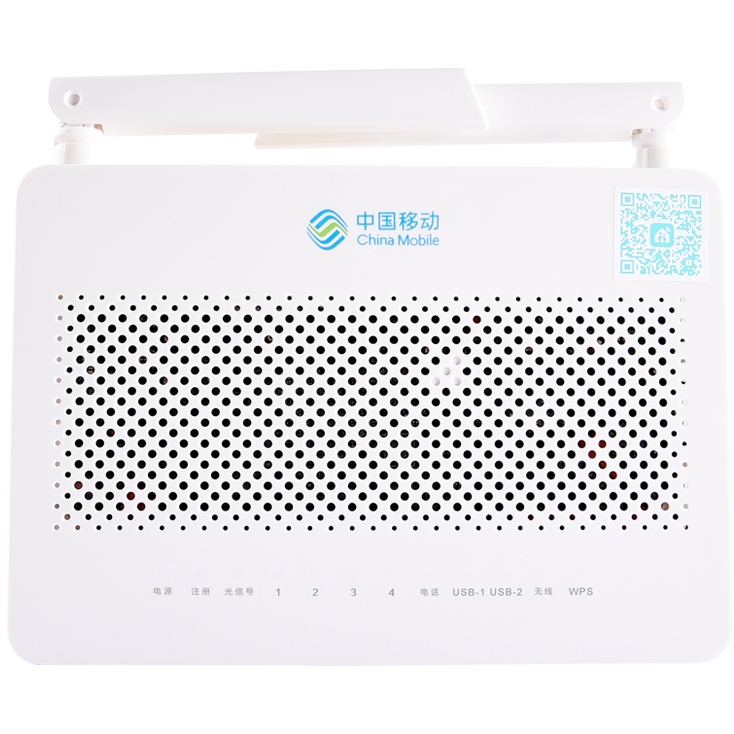

Huawei HS8546v5

Dimensions(DxWxH)

 (156x126x30)mm

System power supply

11V-14VDC,1.5A

Weight

<0.85kg

Static power consumption

8W

Operating temperature

0℃ to 40℃

Maximum power consumption

18.5W

Operating humidity

5%RH to 95% RH(non-condensing)

Ports

4*GE RJ45+1RJ11+2.4G/5G WIFI+2USB
1*GPON

Power adapter input

100-240V AC,50-60HZ

Idicators

POWER/PON/LAN/LOS/TEL/USB/WLAN/WPS

GPON Port

·Ethernet port-based vlan tags and tag removal
·Class B+
·Receiver sensitivity:-27dBm
·Wavelengths:US 1310nm,DS 1490nm
·Wavelength blocking filter(WBF)
·Flexible mapping between GEM Port and TCONT
·GPON:consistent with the SN or password
authentication defined in G.984.3
·Bi-directional FEC
·SR-DBA and NSR-DBA


Ethernet Port

·Ethernet port-based vlan tags and tag removal
·1:1VLAN,N:1 VLAN,or VLAN transparent transmission
·QinQ VLAN
·Limit on the number of learned MAC address
·MAC address learning
·Transparent transmission of IPv6 packets at layer 2

POTS Port

· Maximum REN: 4
·G.711A/μ, G.729a/b, and G.722
encoding/decoding
·T.30/T.38/G.711 fax mode
· DTMF
· Emergency calls (with the SIP
protocol)


USB Port

·USB2.0
· FTP-based network storage

WLAN

IEEE 802.11 b/g/n/ac
·2.4G:2 x 2 MIMO
·5GHz: 2 x 3 MIMO 802.11a/n/ac
·Antenna gain: 2 dBi
· WMM
·Multiple SSIDs
· WPS

Smart Service

· Smart Wi-Fi sharing:
·Portal/802.1x authentication
·SoftGRE-based sharing
· Association of one account with two POTS ports

Smart interconnection

· Smart Wi-Fi coverage
· SIP/H.248 auto-negotiation
·Any port any service
·Parental control (V300R015C00)
· L2/L3(IPv4) forwarding: 1G uplink, 2G downlink

Layer 3 Features

·PPPoE/Static IP/DHCP
· NAT/NAPT
· Port forwarding
· ALG, UPnP
· DDNS/DNS server/DNS client
· IPv6/IPv4 dual stack, and DS-Lite
· Static/Default routes
· Multiple services on one WAN port

QoS

· Ethernet port rate limitation
·802.1p priority
·SP/WRR/SP+WRR
· Broadcast packet rate limitation
· Flow mapping based on the VLAN ID,port ID, or/and 802.1p

Security

· SPI firewall
· Filtering based on
MAC/IP/URL addresses

Power Saving

· Indicator power saving
·Power consumption reduction of idle components in power-saving state
· COCv4

Smart O&M

· Variable-length OMCI messages
· Active/Passive rogue ONT detection and isolation
· PPPoE/DHCP simulation testing
· Call emulation, and circuit test and loop-line test

Common O&M

·OMCI/Web UI
· Dual-system software backup and rollback
·802.1ag Ethernet OAM
· Optical link measurement and diagnosis
·Loopback check

Multicast

·IGMP v2/v3 snooping
· MLD v1/v2 snooping
· Fast leave
·VLAN tag translation, transparent transmission, and removal for downstream multicast packets
· IGMP/MLD protocol packet rate limitation

Power Saving

· Dynamic power saving
· Indicator power saving
· Scheduled Wi-Fi shutdown
