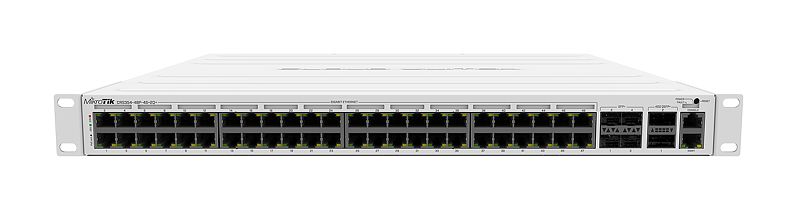

MikroTik CRS354-48P-4S+2Q+RM

Number of AC inputs

1

AC input range

100-240

Max power consumption

800 W

Max power consumption without attachments

85 W

PoE-out ports

48 ports with 802.3af/at and passive modes

PoE out

802.3af/at

Max out per port output (input < 30 V)

1000 mA

Max out per port output (input > 30 V)

570 mA

Total output current

27A at 26V OR 13.2A at 53V

Total output power

700W

10/100 Ethernet ports

1

10/100/1000 Ethernet ports

48

SFP+ ports

4

Number of 40G QSFP+ ports

2

Serial port

RJ45

CPU temperature monitor

Yes

Current Monitor

Yes

PCB temperature monitor

Yes

Voltage Monitor

Yes

Certification

Product code

CRS354-48P-4S+2Q+RM

Architecture

MIPSBE

CPU

QCA9531

CPU core count

1

CPU nominal frequency

650 MHz

Dimensions

443 x 382 x 44 mm

License level

5

Operating System

RouterOS

Size of RAM

64 MB

Storage size

16 MB

Storage type

FLASH

Tested ambient temperature

-20°C to 60°C
