D-Link DGS-1510-28 24xGE, 2xSFP, 2xSFP+, stack

D-Link DGS-1510-28 24xGE, 2xSFP, 2xSFP+, stack

.
Kod producenta: DGS-1510-28
Zapytaj o ten produkt

Wszystkie dane techniczne

Biuro obsługi klienta: +48 34 333 67 76

Zakupy hurtowe - Kupuj ten produkt w cenach hurtowych: Panel B2B

Dostępność: Skonsultuj z handlowcem

Cena:

1 114,76 zł z VAT (906,31 zł netto)

Koszt przesyłki: od 19,07
Darmowa dostawa od kwoty 2000,00 zł

Opis produktu

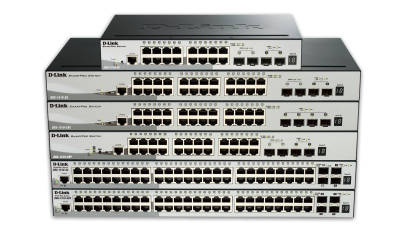

The DGS-1510 Series Gigabit Stackable Smart Managed Switches consists of:

DGS-1510-20: 20-Port Gigabit Stackable Smart Managed Switch including 2 10G SFP+ and 2 SFP ports (smart fans)
DGS-1510-28: 28-Port Gigabit Stackable Smart Managed Switch including 2 10G SFP+ and 2 SFP ports (smart fans)
DGS-1510-28X: 28-Port Gigabit Stackable Smart Managed Switch including 4 10G SFP+ (smart fans)
DGS-1510-28P: 28-Port Gigabit Stackable PoE Smart Managed Switch including 2 10G SFP+ and 2 SFP ports (24 x PoE ports, smart fans)
DGS-1510-52: 52-Port Gigabit Stackable Smart Managed Switch including 2 10G SFP+ and 2 SFP ports (smart fans)
DGS-1510-52X: 52-Port Gigabit Stackable Smart Managed Switch including 4 10G SFP+ (smart fans)

The DGS-1510 Series is D-Link’s latest generation of Smart Managed switches with 10G port connectivity, making them ideal for deployment in SME/SMB aggregation environments. The DGS-1510 Series provides a reliable and scalable interconnection between core switches and edge switches with rich capabilities and simplified flexibility. Available in 16, 24 or 48 10/100/1000 Mbps port models, with additional fibre ports for physical stacking and / or uplinks.

The DGS-1510 Series PoE-enabled switches are ideal for businesses looking to power VoIP phones, wireless access points or network cameras. The DGS-1510-28P 24-port PoE Switch supports up to 30W of power output giving you flexibility in power allocation for a variety of powered devices. This enables you to scale your operations to meet business growth and incorporate new technologies all with affordable installation costs.

10G SFP+ Stacking/Uplink Ports

Depending on whether linear or fault-tolerant ring stacking is implemented, users can use one or two 10-Gigabit SFP+ ports to create a physical stack. 6 units or 288 Gigabit ports can be configured as a stack using optional direct attach cables to provide high bandwidth on the DGS-1510 Series with cost efficiency. Users can mix from any of the DGS-1510 Series in a single stack to allow simultaneous and easy configuration, management and troubleshooting. With 20Gbps full duplex, the DGS-1510 Series offers 10G connectivity to core networks as well as servers with 10G capability while maintaining high performance and minimal impact to the data transfer rates.

Layer 3 Traffic Management

The DGS-1510 Series provides static route, allowing you to segment your network into workgroups and communicate across VLANs without degrading application performance. With these capabilities, you can boost the efficiency of your network by offloading internal traffic-handling tasks from your router and allowing it to manage external traffic and security.

Extensive Layer 2 Features

The DGS-1510 Series switches are equipped with a complete lineup of Layer 2 features including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Layer Discovery Protocol (LLDP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port or VLAN and automatically shuts down the affected port or VLAN. The Cable Diagnostics feature, designed primarily for administrators and customer service representatives, can quickly discover the type of error on cables as well as determine cable quality.

Traffic Classification & QoS

The DGS-1510 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology built into D-Link Smart Switches. This technology consolidates data and surveillance video transmission through a single Smart Managed switch, sparing businesses the expense of maintaining expensive dedicated hardware and facilities. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. The Auto Voice VLAN technology enhances VoIP service by automatically placing voice traffic from an IP phone to an assigned VLAN. With higher priority and an individual VLAN, these features guarantee the quality and security of VoIP traffic. Furthermore, the DSCP markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with per flow Bandwidth Control, network administrators can reserve bandwidth for important functions that require more bandwidth or might require high priority.

Securing Your Network

D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by malicious attacks. The switches also support 802.1X port-based authentication, allowing the network to be authenticated through external RADIUS servers.

The DGS-1510 Series has both MAC & Web-based Access Control supported, these provide a user friendly way to alleviate deployment time, giving customers an effective and efficient authentication choice without the complexity in securing their networks.

Additionally, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network by screening ingress traffic based on any user defined content. The DGS-1510 Series includes ARP Spoofing Prevention, which protects from attacks on the Ethernet network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages to the network. For added security, the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

General

Port Standards & Functions

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
802.3ae 10 GbE
IEEE 802.3x Flow Control for Full-Duplex Mode
Auto-negotiation

Number of Ports

DGS-1510-20 - 16 10/100/1000 Mbps, 2 Gigabit SFP, 2 10G SFP+
DGS-1510-28 - 24 10/100/1000 Mbps, 2 Gigabit SFP, 2 10G SFP+
DGS-1510-28X - 24 10/100/1000 Mbps, 4 10G SFP+
DGS-1510-28P - 24 10/100/1000 Mbps PoE capable, 2 Gigabit SFP, 2 10G SFP+
DGS-1510-52 - 48 10/100/1000 Mbps, 2 Gigabit SFP, 2 10G SFP+
DGS-1510-52X - 48 10/100/1000 Mbps, 2 Gigabit SFP, 4 10G SFP+

Network Cables

UTP Cat. 5, Cat. 5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)

Full/Half Duplex

Full/half duplex for 10/100 Mbps and Gigabit speed

Media Interface Exchange

Auto or configurable MDI/MDIX

Performance

Switching Capacity

DGS-1510-20 - 76 Gbps
DGS-1510-28 - 92 Gbps
DGS-1510-28X - 128 Gbps
DGS-1510-28P - 92 Gbps
DGS-1510-52 - 140 Gbps
DGS-1510-52X - 176 Gbps

Transmission Method

Store-and-forward

MAC Address Table

16,000 entries per device

MAC Address Update

Up to 512 static MAC entries
Enable/disable auto-learning of MAC addresses

Maximum 64 bytes Packet Forwarding Rate

DGS-1510-20 - 56.54 Mpps
DGS-1510-28 - 68.45 Mpps
DGS-1510-28X - 95.24 Mpps
DGS-1510-28P - 68.45 Mpps
DGS-1510-52 - 104.16 Mpps
DGS-1510-52X - 130.95 Mpps

Packet Buffer Memory

DGS-1510-20/28/28X/28P - 1.5 MB per device
DGS-1510-52/52X - 3 MB per device

PoE (DGS-1510-28P only)

PoE Standard

IEEE 802.3af, 802.3at

PoE Capable Ports

Ports 1 to 24: Up to 30 W

PoE Power Budget

Max. 193 W

Physical & Environment

AC Input

100 to 240 VAC 50/60 Hz internal universal power supply

Maximum Power Consumption

DGS-1510-20 - 20.3 W
DGS-1510-28 - 24 W
DGS-1510-28X - 22.3 W
DGS-1510-28P – 238.7 W (PoE on), 29 W (PoE off)
DGS-1510-52 - 38.4 W
DGS-1510-52X - 44.2 W

Standby Power Consumption

DGS-1510-20 - 12.2 W
DGS-1510-28 - 15.2 W
DGS-1510-28X - 15.2 W
DGS-1510-28P -21 W
DGS-1510-52 - 27.6 W
DGS-1510-52X - 28.9 W

Smart Fan Quantity

DGS-1510-20/28/28X – 1
DGS-1510-28P/52/52X – 2

Acoustics

DGS-1510-20 - 43.8 dB(A)
DGS-1510-28 - 43.8 dB(A)
DGS-1510-28X - 42.7 dB(A)
DGS-1510-28P – 46.4 dB(A)
DGS-1510-52 - 44.2 dB(A)
DGS-1510-52X - 45.8 dB(A)

Heat Dissipation

DGS-1510-20 - 41.602 BTU/hr
DGS-1510-28 - 72.292 BTU/hr
DGS-1510-28X - 76.043BTU/hr
DGS-1510-28P – 813.967 BTU/hr
DGS-1510-52 - 130.944 BTU/hr
DGS-1510-52X - 138.787 BTU/hr

Operation Temperature

-5 to 50 ˚C (23 to 122 ˚F)

Storage Temperature

-20 to 70˚C (-4 to 158 ˚F)

Operation Humidity

0% to 95% non-condensing

Storage Humidity

0% to 95% non-condensing

Dimensions

DGS-1510-20 - 280 x 180 x 44 mm (11 x 7.09 x 1.73 inches)
DGS-1510-28 - 440 x 210 x 44 mm (17.36 x 8.26 x 1.73 inches)
DGS-1510-28X - 440 x 210 x 44 mm (17.36 x 8.26 x 1.73 inches)
DGS-1510-28P - 440 x 250 x 44 mm (17.36 x 9.84 x 1.73 inches)
DGS-1510-52 - 440 x 250 x 44 mm (17.36 x 9.84 x 1.73 inches)
DGS-1510-52X - 440 x 250 x 44 mm (17.36 x 9.84 x 1.73 inches)

Weight

DGS-1510-20 - 1.24 kg
DGS-1510-28 - 2.00 kg
DGS-1510-28X - 2.00 kg
DGS-1510-28P – 2.54 kg
DGS-1510-52 - 2.40 kg
DGS-1510-52X - 2.40 kg

Diagnostic LEDs

Power/Stacking ID/Fan (per device)
Power/Stacking ID/Fan Error/PoE Push Button (per device) (for DGS-1210-28P only)
Link/Activity/Speed (per 10/100/1000 Mbps port)
Link/Activity/Speed/PoE Mode (per 10/100/1000 Mbps port) (for DGS-1210-28P only)
Link/Activity/Speed (per Gigabit SFP port)
Link/Activity/Speed (per 10G SFP+ port)

Certifications

CE
FCC
C-Tick
VCCI
BSMI
CCC

Safety

Software Features

Stackability

Virtual Stacking Support
- D-Link Single IP Management
- Up to 32 devices per virtual stack
- Up to 20G stacking bandwidth
Physical Stacking
- Supports Duplex Chain/Ring topology
- Up to 40G stacking bandwidth full duplex
- Up to 6 units per stack

L2 Features

MAC Address Table: 16K
Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
Jumbo Frame up to 9000 Bytes
IGMP Snooping
- IGMP v1/v2 Snooping
- IGMP v3 awareness
- Supports 512 IGMP groups
- Supports 128 static multicast addresses
- IGMP per VLAN
- Supports IGMP Snooping Querier
- Host-based IGMP Snooping Fast Leave
MLD Snooping
- Supports MLD v1/v2 awareness
- Supports 512 groups
- Supports 128 Static Multicast Addresses
- Per VLAN MLD Snooping
- Host-Based MLD Fast Leave
- MLD Snooping Querier
Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
- 802.1s MSTP
Loopback Detection
802.3ad Link Aggregation
- Max. 32 groups per device/8 ports per group
Port Mirroring
- Support 4 mirroring groups
- One-to-One, Many-to-One
- Supports Mirroring for Tx/Rx/Both
Multicast Filtering
- Forwards all unregistered groups
- Filters all unregistered groups
LLDP, LLDP-MED
ERPS (Ethernet Ring Protection Switching)

VLAN

802.1Q Tagged VLAN
4K VLAN Groups
Configurable VID: 0~4094
Asymmetric VLAN
Auto Voice VLAN
Auto Surveillance VLAN

Quality of Service (QoS)

802.1p Quality of Service
Queue Handling
- Strict
- Weighted Round Robin (WRR)
8 queues per port
Bandwidth Control
- Port-based (Ingress/Egress, min. granularity for 10/100/1000Base-T ports is 64 Kb/s)
CoS based on
- 802.1p priority
- VLAN
- MAC address
- Ether type
- IP address
- DSCP
- Protocol type
- TCP/UDP port number
- DSCP of IPv6 Traffic Class
- IPv6 flow label

L3 Features

ARP
- 256 Static ARP
- Supports Gratuitous ARP
IPv6 Neighbour Discovery (ND)
16 IP interfaces
Default Routing
Static Routing
- 64 IPv4 Static Route Entries
- 32 IPv6 Static Route Entries

Access Control List (ACL)

ACL based on
- 802.1p priority
- VLAN
- MAC address
- Ether type
- IP address
- DSCP
- Protocol type
- TCP/UDP port number
- DSCP of IPv6 Traffic Class
- IPv6 flow label
ACL Actions
- Permit
- Deny
Max. 256 access list
Max. 768 rules
Single or multiple ports (each rule)
Time-based ACL
ACL Statistics

Security

Port Security
- Supports up to 128 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control
Dynamic ARP Inspection
Static MAC
D-Link Safeguard Engine
DHCP Server Screening
ARP Spoofing Prevention
- Max. 64 entries
SSH
- Supports v02
- Supports IPv4/IPv6
SSL
- Supports v1/v2/v3
- Supports IPv4/IPv6
Traffic Segmentation
IP-MAC-Port Binding
- DHCP snooping
- IP Source Guard
- Dynamic ARP inspection
- DHCPv6 Guard
- RA Guard
- IPv6 Snooping
- IPv6 source guard
DoS Attack Prevention

AAA

Compound Authentication
802.1X Port and MAC-based Authentication
- Supports RADIUS and Local Server
- Supports EAP, OTP, TLS, TTLS, PEAP
Web-based Access Control (WAC)
- Port-based Access Control
- Host-based Access Control
- Dynamic VLAN Assignment
MAC-based Access Control (MAC)
- Port-based Access Control
- Host-based Access Control
- Dynamic VLAN Assignment
Japan Web-based Access Control (JWAC)
- Port-based Access Control
- Host-based Access Control
- Dynamic VLAN Assignment
