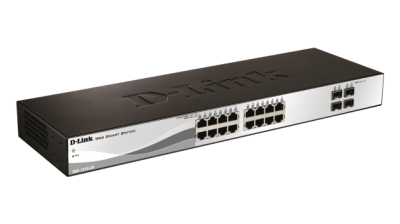

D-Link DGS-1210-20 26xGE, 4xCombo

.
Kod producenta: DGS-1210-20
Zapytaj o ten produkt

Wszystkie dane techniczne

Biuro obsługi klienta: +48 34 333 67 76

Zakupy hurtowe - Kupuj ten produkt w cenach hurtowych: Panel B2B

Dostępność: Skonsultuj z handlowcem

Cena:

646,75 zł z VAT (525,81 zł netto)

Koszt przesyłki: od 19,07
Darmowa dostawa od kwoty 2000,00 zł

Opis produktu

Description:

Switch Series D-Link DGS-1210 includes a Web Smart Switch is the next generation of technology to support D-Link Green 3.0. Series complies with Energy Efficient Ethernet IEEE 802.3az. IPv6 support for management and configuration ensures that the network will be protected after the transition from IPv4 to IPv6 ^1. With the available functionality series switches DGS-1210 allows you to quickly deploy a network or expand existing infrastructure. Focusing on small and medium businesses, switches, Web Smart DGS-1210 provides the functionality, security and manageability with minimum costs for the purchase and operation.

Energy savings

Using the technology of D-Link Green 3.0, Switches DGS-1210 series can save energy without sacrificing performance and functionality of the device. With standard Energy Efficient Ethernet switch will automatically reduce energy use when there is little traffic flow. For conditions in which the standard is not fully supported, Switch DGS-1210 series offers power saving features such as switching ports in the standby mode, the indicator turns off when inactive and the system in sleep mode according to user settings. Time profiles can also be applied to the model series with support for PoE, thus avoiding unnecessary energy consumption during the downturn. Also Switches DGS-1210 series can determine the length of connected cables to automatically reduce energy use in the event of a short cable connections.

Simple operation

Series Switches Web Smart D-Link provides an easy operation. All settings can be done through the Web-based interface, regardless of the operating system on a PC. In addition, Web-based user interface contains ten language options, allowing you to make the operation more understandable. When you first install the SmartConsole Utility automatically detects all switches series Smart D-Link network, allowing administrators to quickly assign them IP-address and subnet mask. You can also simultaneously update the software on multiple switches, saving time. Important management capabilities, such as downloading software or configuration provides an improved method of work in the multicast data to multiple switches.

Auto Surveillance VLAN and Voice VLAN

Web Smart Switch Series enables you to automate the process of installation of IP-surveillance and VoIP devices on the network. ASV ensures high quality video in real time, grouping devices IP-surveillance in a separate VLAN with high priority. This ensures that if the traffic with lower priority data will also be transmitted over the network, it does not affect the flow of surveillance. Likewise, Auto Voice VLAN provides quality and efficient transmission of voice data.

Extensive Layer 2

These switches support the full set of Layer 2 features, including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). Function IEEE 802.3x Flow Control allows you to directly connect the server to the switch for fast, reliable data transfer. Maintaining at 2000 Mbit / s in full duplex mode, the switches provide high-speed transmission for connecting jobs with minimal loss of data. The switches support function and Cable Diagnostics function Loopback Detection. Loopback Detection is used to determine the loops and automatic shut-off port or VLAN, which detected a loop. Cable Diagnostics is designed to determine the quality of the copper cables and also the type of cable error.

Network Security

Function D-Link Safeguard Engine protects the switches against traffic flooding caused by, for example, the activity of viruses. Authentication based on 802.1X port allows you to use an external RADIUS server to authenticate users. In addition, the functional ACL (access control lists) enhances network security and helps protect your network by blocking traffic from unauthorized MAC-addresses or IP-addresses. Function is to prevent ARP Spoofing attacks prevents mass-mailing of false ARP-posts intruders. It protects user data from being intercepted with the use of attacks such as "Man-in-the-middle", and also prevents waste of CPU resources for these packages. For added security feature DHCP Server Screening, prohibiting access by unauthorized DHCP-servers.

MAC Address Table

    16K entries

Packet Forwarding Rates

    29.8 Mpps

Interface

    16-Port 10/100/1000Base-T with 4 SFP ports

Physical Stacking Port

    NA

Switching Capacity

    40 Gbps

PoE Standard

    NA

PoE Power Budget

    NA

Rack Mountable

    Yes

Management

    Web Managed

Routing/Switching

    Layer 2

Predominent Port Type

    Gigabit Copper

Features:

Standards and functions of ports
+ IEEE 802.3 10BASE-T Ethernet (copper twisted-pair)
+ IEEE 802.3u 100BASE-TX Fast Ethernet (copper twisted-pair)
+ IEEE 802.3ab 1000BASE-T Gigabit Ethernet (copper twisted-pair)
+ Auto-ANSI / IEEE 802.3
+ IEEE 802.3x Flow Control

Number of Ports
16 ports of 10/100/1000 Mbit / s, 4 SFP ports

Network Cables
+ UTP category. 5, 5e (max. 100 m)
+ EIA / TIA-568 100 ohm STP (max. 100 m)

Full / half duplex
+ Full / half duplex speed for 10 / 100Mbit / s
+ Full duplex for Gigabit speed

Interfaces transmission medium
Interfaces with support MDI / MDI-X

Performance
Bandwidth switch
40 Gbit / s

Transmission Method
Store-and-forward

MAC-address table
16,000 records

Study of MAC-addresses
+ Up to 256 static entries MAC-addresses
+ Enable / disable MAC-address avtoizucheniya

Maximum speed forwarding 64-byte
29.8 Mpps

Packet buffer memory
1 MB on the device

Software
Layer 2 functions

+ Table MAC-addresses: 16,000 records
+ Flow Control
- 802.3x Flow Control
- Prevent blocking HOL
+ Support for Jumbo-frames up to 10,000 bytes
+ IGMP Snooping
- IGMP v1 / v2 Snooping
- Supports up to 256 IGMP-groups
- Supports up to 64 static multicast groups
- IGMP on VLAN
- Supports IGMP Snooping Querier
+ Spanning Tree Protocol
- 802.1D STP
- 802.1w RSTP
+ Loopback Detection
+ 802.3ad Link Aggregation: max. the number of groups on the device 10/8 ports per group
+ Port Mirroring
- One-to-One
- Many-to-One
- Supports Mirroring for Tx / Rx / Both
+ Cable Diagnostics
+ Customizable interface MDI / MDIX
+ Multicast Filtering
- Redirect all unregistered groups
- Filtering of unregistered groups
+ LLDP, LLDP-MED

VLAN
+ 802.1Q
+ VLAN Group
- Max. 256 static VLAN groups
- Max. VID 4094
+ Management VLAN
+ Asymmetric VLAN
+ Auto Voice VLAN
- Max. 10 user defined OUI
- Max. 8 by default defined OUI
+ Auto Surveillance VLAN

QoS (Quality of Service)
+ 802.1p Quality of Service
+ 4 queues per port
+ Processing Queue
- Strict
- Weighted Round Robin (WRR)
+ CoS based
- 802.1p Priority Queues
- DSCP
- TOS1
- Non-TCP / UDP port ¹
- Class ¹ IPv6 traffic
+ Bandwidth Management
- Based on the port (incoming / outgoing, in increments of up to 64 Kb / s)

Access Control Lists (ACL)
+ 50 profiles (maximum)
+ Max. 240 Access Rules
+ ACL on the basis of
- MAC-addresses
- IPv4-address (ICMP / IGMP / TCP / UDP)
- VLAN ID
- 802.1p priority
- DSCP
- Class ¹ IPv6 traffic
+ Actions ACL
- Allow
- Prohibit

Security
+ Port Security
- Supports up to 64 MAC-addresses per port
+ Protection against broadcast / multicast / unicast storm
+ Static MAC-address
+ D-Link Safeguard Engine
+ Function DHCP Server Screening
+ Preventing ARP Spoofing Attacks
- Max. 64 entries
+ SSL
- Support v1 / v2 / v3
- Support IPv4 / IPv6 ¹
+ Traffic Segmentation
+ Intelligent binding
- Detection of connected devices and their binding
- Inspection of ARP-packets: 512 entries
- Inspection of IP-packets: 128 entries
- Support for DHCP Snooping

AAA

+ Authentication 802.1X port-based

- Support for RADIUS-server

- Support for EAP, OTP, TLS, TTLS, PEAP

OAM

+ Cable Diagnostics

+ Return to factory settings

MIB

+ 1213 MIB II

+ 1493 Bridge MIB

+ 1907 SNMP v2 MIB

+ 1215 Trap Convention MIB

+ 2233 Interface Group MIB

+ D-Link Private MIB

+ Power-Ethernet MIB

+ LLDP MIB

+ D-Link ZoneDefense MIB

Compliance with RFC

+ RFC 783 TFTP

+ RFC 854 Telnet-server

+ RFC 951 BootP / DHCP-client

+ RFC 1157 SNMP v1, v2, v3

+ RFC 1191 Path MTU Discovery

+ RFC 1213 MIB II, IF MIB

+ RFC 1215 MIB Traps Convention

+ RFC 1350 TFTP

+ RFC 1493 Bridge MIB

+ RFC 1542 BootP / DHCP-client

+ RFC 1769 SNTP

+ RFC 1901 SNMP v1, v2, v3

+ RFC 1907 SNMP v2 MIB

+ RFC 1908 SNMP v1, v2, v3

+ RFC 2068 FCS

+ RFC 2131 BootP / DHCP-client

+ RFC 2138 RADIUS authentication

+ RFC 2139 RADIUS authentication

+ RFC 2233 Interface Group MIB

+ RFC 2246 SSL

+ RFC 2475

+ RFC 2570 SNMP v1, v2, v3

+ RFC 2575 SNMP v1, v2, v3

+ RFC 2598 CoS

+ RFC 2616 FCS

+ RFC 2618 RADIUS authentication

+ RFC 2819 RMON v1

+ RFC 2865 RADIUS authentication

+ RFC 3164 System Log

+ RFC 3195 System Log

+ RFC 3411-17 SNMP

+ RFC 3621 Power Ethernet MIB

Management
+ Multilingual Web-based GUI
- English (default)
- Simplified Chinese
- Traditional Chinese
- French
- German
- Italian
- Japanese
- Portuguese
- Russian
- Spanish
+ The SmartConsole
+ Simplified CLI
+ Telnet-server
+ TFTP-client
+ IPv6 Neighbor Discovery ¹
+ Customizable network interfaces with support MDI / MDIX
+ SNMP
- Support v1 / v2 / v3
+ SNMP Trap
+ System Log
- Max. 500 log entries
+ BootP / DHCP-client
+ SNTP
+ ICMPv6 ¹
+ IPv4 / IPv6 Dual Stack ¹
+ Automatic DHCP configuration
+ RMONv1
+ PoE on the basis of time (only models supporting PoE)

Technology D-Link Green 3.0

+ Energy saving:

- In various states of connection

- Depending on the cable length

- When you turn indicators or ports

- In standby mode, the ports

- In sleep mode, the system

The input power
100-240 VAC, 50/60 Hz, internal universal power supply

Maximum power consumption
14.06 W

Power consumption in standby mode
6.7 W / 110 V, 7.2 W / 240

The number of fans
0

Noise level
0 dB

Heat release
47.97 BTU / hr

Working temperature
-5 ° to 50 ° C

Storage temperature
-20 ° to 70 ° C

Working Humidity
From 0% to 95% non-condensing

Humidity Storage
From 0% to 95% non-condensing

Dimensions
+ 440 mm x 140 mm x 44 mm
+ Size for installation in a standard 19-inch rack, 1U height

Weight
2.2 kg

Diagnostic Lights
+ Power (per device)
+ Link / Activity / Speed ??(per port 10/100/1000 Mbit / s)
+ Link / Activity / Speed ??(Per Port SFP)

MTBF
253.460 h

Certifications
+ FCC Class A
+ CE Class A
+ ICES-003
+ VCCI Class A
+ C-Tick
+ BSMI

Security
+ CUL
+ CE LVD
