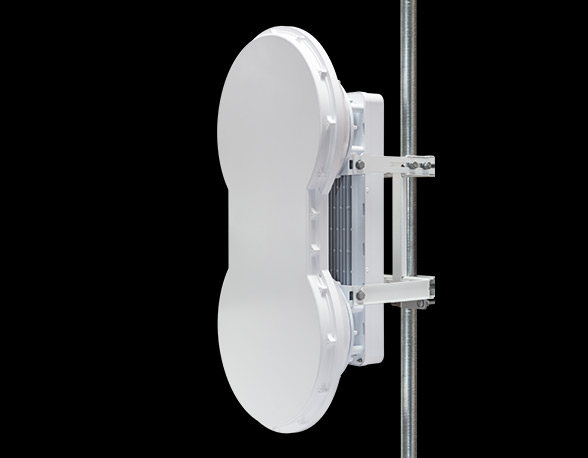

airFiber AF-5 5 GHz Mid-band Bridge

Opis produktu

Two airFiber models are available for 5 GHz. The model, AF5, features the popular mid-band frequencies, which are freely used in many parts of the world.

The high-band model, AF5U, can use the less congested, 5.9 and 6 GHz bands (as permitted by local country regulations) and has robust filtering to enable co-location with devices operating in the lower 5 GHz bands.

Operating in the 5GHz band, airFiber 5 builds on the innovations in airFiber 24 to enable speeds up to 1Gbps and introduces new eXtended Range Technology (xRT) to provide 100+Km maximum range.

Superior Processing
Ubiquiti Networks introduces our proprietary INVICTUS™ core communications
processing engine. The speed, power, and efficiency of this integrated circuit
enhances the performance of airFiber AF5/AF5U.

Efficient Use of 5 GHz Band
airFiber AF5/AF5U features 1 MHz center channel resolution with market-leading
Power Envelope Tracking technology. airFiber AF5/AF5U accurately and
continuously controls transmit power relative to the band edge. The power level
automatically tracks to optimize performance near band edges, allowing you to
choose the part of the band with the least interference.

Long-Range Links
Newly developed for airFiber AF5/AF5U, the patent-pending xRT feature
uses an innovative, adaptive multi-channel coding scheme to enhance radio
transceiver performance, thereby maximizing your link budget and spectrum
utilization – while still maintaining regulatory compliance. This results in links that
can span distances from 10 m up to 100+ km.

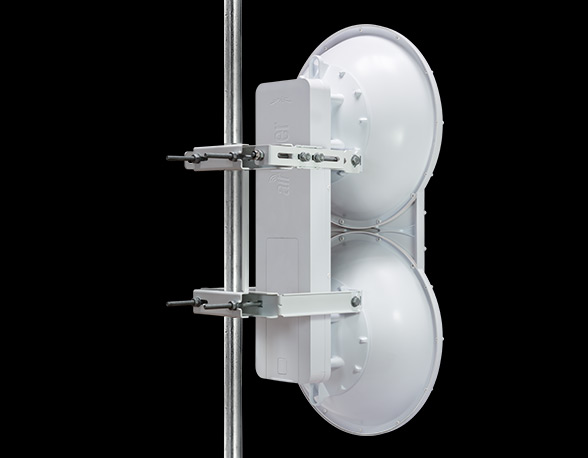

Quick and Easy Installation
The unique sliding-clamp design of airFiber AF5/AF5U allows mounting hardware
to be pre-assembled prior to installation – no more dropped screws at the top of
the tower. As an added convenience, the drop-in cradle mount design allows the
installer to attach mounting hardware to the pole without having to support the
weight of the airFiber radio during installation.

Datasheet:

• Airfiber 5
