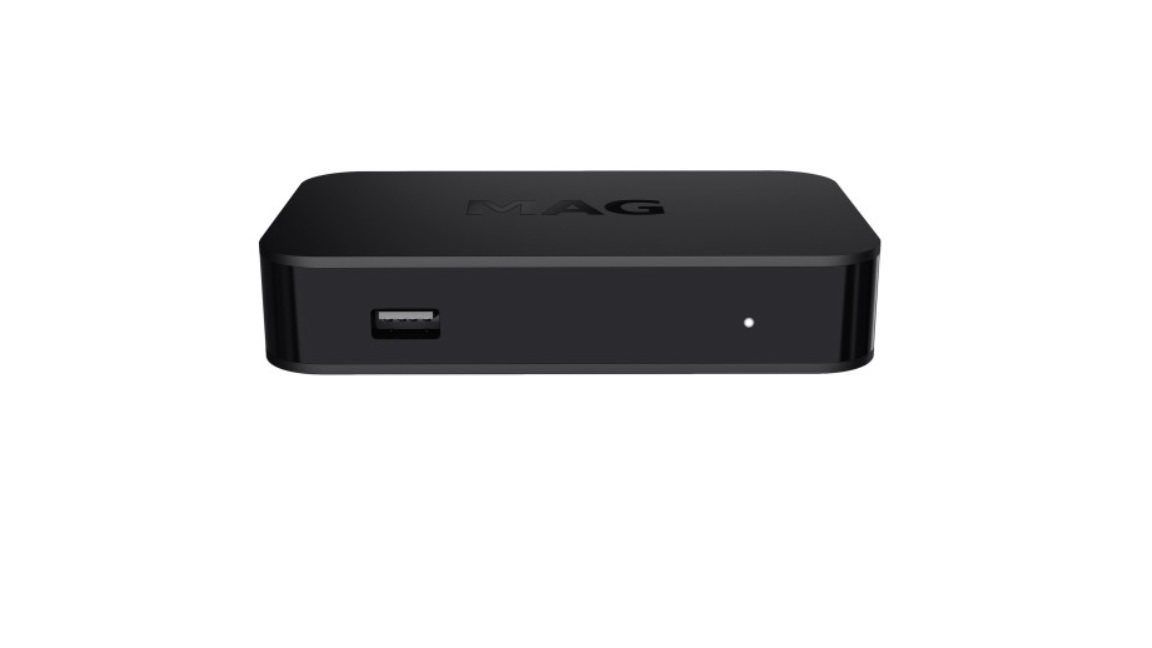

STB MAG420

.
Zapytaj o ten produkt

Wszystkie dane techniczne

Biuro obsługi klienta: +48 34 333 67 76

Zakupy hurtowe - Kupuj ten produkt w cenach hurtowych: Panel B2B

Cena:

Produkt archiwalny

Koszt przesyłki: od 19,07
Darmowa dostawa od kwoty 2000,00 zł

Opis produktu

MAG420 is a powerful and cost-effective solution for quickly launching IPTV/OTT projects. Thanks to the ARM Cortex-A53 processor on the Hi3798MV200 chipset and the built-in HEVC codec, this set-top box easily reproduces 4K content at 60 fps and does not create excessive network loading.

MAG420 delivers pure surround sound with the help of built-in Dolby Digital six-channel audio support.

4K and HEVC support, 512 MB RAM, 512 MB NAND, USB × 2 pcs. (3.0, 2.0), Built-in Wi-Fi (only for MAG420w1), Linux OS, HDMI and RCA outputs

Dimensions

Width/depth/height, (mm)	132х87х26
Weight, g	128

Hardware

Chipset	Hi3798MV200
Processor	ARM Cortex-A53 Quad Core CPU 1200 MHz
Performance	15 000 DMIPS
RAM	512 MB
Flash memory	512 MB NAND

Software

Operating system	Linux 4.4.35
Middleware supported	Ministra TV platform version 5.4.1 or higher

Interfaces

	RCA 3.5 mm, HDMI 2.0, Ethernet 100 Mbps, USB 2.0х1, USB 3.0x1

Sources of media content

	PC and NAS in a local network, Stream media protocols (RTSP, RTP, UDP, HTTP), USB devices

Audio & video

Audio сodecs	MPEG L1/L2/L3, Dolby Digital, AAC-LC, HE AAC V1/V2, APE, FLAC
Audio formats	AC3, ACC, APE, FLAC, M4A, MP3, OGG, WAV
Video modes	PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p
Video сodecs	MPEG1/2 MP@HL, MPEG4 part 2 (ASP),H.265 Main/Main 10@L5.1 High 2160p@60 fps, H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support
Video containers	TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB
Image formats	JPEG, PNG, BMP, RAW
Subtitles	DVB, PGS, SRT, SSA/ASS, SUB, Teletext subs, WebVtt, Closed captions
Playlist formats	M3U, M3U8, PLS, CUE
