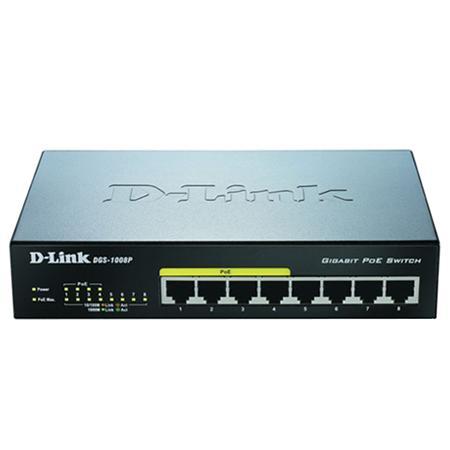

D-Link DGS-1008P 4xGE, 4xGE/PoE

Key Features

• ƒƒ8 10/100/1000 Mbps Gigabit Ports
• ƒƒAuto MDI/MDIX Crossover for all ports
• ƒƒStore-and-forward Switching Scheme
• ƒƒFull/half-duplex for Ethernet/Fast
• Ethernet Speeds
• ƒƒIEEE 802.3x Flow Control
• ƒƒPlug-and-play Installation
• ƒƒBuilt-in D-link Green Technology
• IEEEE 802.3az Energy Efficient Ethernet (EEE)
• ƒƒRoHS Compliant
• ƒƒIEEE 802.1p QoS (4 Queues, Strict Mode)
• ƒƒSupports Cable Diagnostics
• ƒƒSupports 9720 KBytes Jumbo Frames



Switching Capacity

• ƒƒ16 Gbps



Standards

• ƒƒIEEE 802.3 10BASE-T Ethernet
• ƒƒIEEE 802.3u 100BASE-TX Fast Ethernet
• ƒƒIEEE 802.3ab 1000BASE-T Gigabit Ethernet
• ƒƒANSI/IEEE 802.3 NWay Auto-negotiation
• ƒƒIEEE 802.3x Flow Control
• ƒƒIEEE 802.1p QoS



PoE Features

• ƒƒSupports IEEE 802.3af
• ƒƒSupplies power to PD: up to 15.4 Watts
• ƒƒTotal PoE budget: 52 Watts
• ƒƒPoE port count/Average PoE watts per port: 4 (Port 1 - 4) / 13 Watts



Data Transfer Rates

• ƒƒEthernet:
  • ƒƒ10 Mbps (half duplex)
  • ƒƒ20 Mbps (full duplex)
• ƒƒFast Ethernet:
  • ƒƒ100 Mbps (half duplex)
  • ƒƒ200 Mbps (full duplex)
• ƒƒGigabit Ethernet
  • ƒƒ2000 Mbps (full duplex)



Topology

• ƒƒStar



Media Interface Exchange

• ƒƒAuto MDI/MDIX adjustment for all ports



Network Cables

• ƒƒ10BASE-T:
  • ƒƒUTP CAT 3/4/5/5e (100 m max.)
  • ƒƒEIA/TIA-586 100-ohm STP (100 m max.)
• ƒƒ100BASE-TX, 1000BASE-T:
  • ƒƒUTP CAT 5/5e (100 m max.)
  • ƒƒEIA/TIA-568 100-ohm STP (100 m max.)



LED Indicators

• ƒƒPer port: Link/Activity/Speed/PoE Status
• ƒƒPer device: Power/PoE Max



Transmission Method

• ƒƒStore-and-forward



MAC Address Table

• ƒƒ4K Entries per device



MAC Address Learning

• ƒƒAutomatic update



Packet Filtering/Forwarding Rates

• ƒƒEthernet: 14,880 pps per port
• ƒƒFast Ethernet: 148,800 pps per port
• ƒƒGigabit Ethernet: 1,488,000 pps per port



RAM Buffer

• ƒƒ192 KBytes per device



Power Consumption

• ƒƒPower On (Standby):
  • ƒƒDC input: 0.48 Watts
  • ƒƒAC input: 2.1 Watts
• ƒƒMaximum (PoE Off)
  • ƒƒDC input: 4.48 Watts
  • ƒƒAC input: 6.2 Watts
• ƒƒMaximum (PoE On)
  • ƒƒDC input: 57.83 Watts
  • ƒƒAC input: 63.2 Watts



Power Adapter

• ƒƒAC input: 100 to 240 VAC, 50/60 Hz
• ƒƒDC output: DC 48 V/1.25 A (60 Watts)



Operating Temperature

• ƒƒDevice:
  • ƒƒ0 to 50 ˚C (32 to 122 ˚F)
• ƒƒExternal Power Adapter:
  • ƒƒ0 to 40 ˚C (32 to 104 ˚F)



Storage Temperature

• ƒƒ-40 to 70 ˚C (104 to 158 ˚F)



Operating Humidity

• ƒƒ0% to 95% RH non-condensing



Storage Humidity

• ƒƒ0% to 95% RH non-condensing



Device Dimensions (W x D x H)

• ƒƒ190 x 120 x 38 mm (7.5 x 4.7 x 1.5 inches)



Certifications

• ƒƒFCC Class B
• ƒƒICES-003 Class B
• ƒƒCE Class B
• ƒƒC-Tick Class B
• ƒƒVCCI Class B
• ƒƒcUL
• ƒƒLVD
