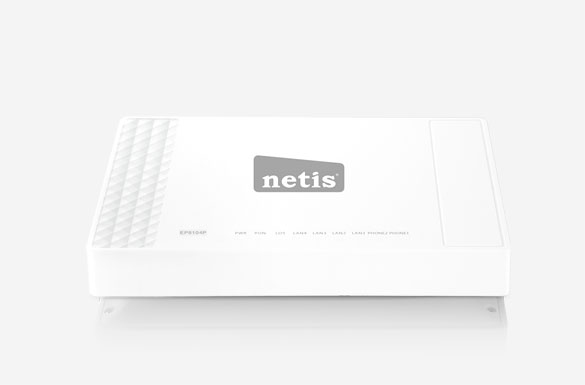

Netis EP8104P 4 Ports Fast Ethernet Plus 2 POTS EPON Terminal

Opis produktu

Netis EP8104P 4 Ports Fast Ethernet Plus 2 POTS EPON Terminal

• Complies with IEEE 802.3-2005&CTC 2.1

• IEEE 802.3-2005 compliant EPON ONU device

• Up to 1.25Gbps for upstream/downstream speed

• Maximum transfer distance up to 20Km

• Automatic discovery and authorization, plug and play

• Support SIP or H248 voice protocol

• Powerful and strong voice POTS service delivery

• AES-128 encryption

• Customized Quality of Service for assured SLA

• IEEE 802.1p priority(SP/WRR/SP+WRR)

• Advanced Layer2 switching features, IGMP Snooping, IEEE 802.1q VLAN,  Rate Limitation, MAC Address management

• Supports Dying Gasp function

• Supports Triple churning

• Remote management based on TR069 protocol and OAM, Local management through Web-based GUI

• 1 * SFF/SC PON port, 2 * RJ11 phone ports, 4 * 10/100Mbps auto-negotiation and auto-MDI/MDIX RJ45 LAN ports

Hardware
Interface	1 * SFF/SC PON port 4 * 10/100Mbps auto-negotiation and MDI/MDIX RJ45 LAN port 2 * RJ11 port
Data Rate	Upstream 1.25Gbps Downstream 1.25Gbps
Distance	0-20KM
Splitting Ratio	1:32(20KM)  1:64(10KM)
Optical Power	-1~+4dBm
Receive Sensitive	-25.5dBm
LED	LAN4-LAN1LOS PON PWR
Button	Power on/off Default
Power Adapter	External 12V2A
Power consumption	<20W (MAX)
Dimensions(L x W x H )	171(L)*112(W)*22(H)mm
Weight	127g

Software
Standard	IEEE 802.3-2005 IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.1p, IEEE 802.1q
QoS	Service Flow Classification based on MAC Address/VLAN/ IP Address /DSCP /L4 port, 802.3x flow control, Schedule rules Support SP/WRR/SP+WRR, Upstream Priority Label Support 802.1p User Priority, Rate Limit and Traffic shaping, Congestion Control Support Tail-Drop/WRED/RED
VLAN	802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode
Advanced Features	Authentication based on Loid and Password or base on MAC Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) , Optical power detection, Dying Gasp, Terminal Silent mechanism, Ethernet port loop testing
Security	AES Encryption, Triple churning Illegal Frame/Illegal Multicast Filtering
Management	Managed by Web and OAM, Specified the management IP/MAC, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic, System Log
IGMP	IGMP v2/v3 IGMP Snooping
Voice	SIP: Complies with IETF RFC 3261 standard H.248: Complies with YD/T 1292 standard SIP or H.248 * (* The standard can be switched through firmware upgrade.)

Others
Environment	Operating Temperature: 0℃~40℃(32°F~104°F) Storage Temperature: -40℃~70℃(-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Package	1 * EP8104P 1 * 12V/2A Power Adapter 1 * Ethernet Cable 1 * Quick Installation Guide
