NETIS EP8101G 1 Port Gigabit EPON Terminal

Opis produktu

NETIS EP8101G 1 Port Gigabit EPON Terminal

• Complies with IEEE 802.3-2005& CTC 2.1

• IEEE 802.3-2005 compliant EPON ONU device

• Up to 1.25Gbps for upstream/ downstream speed

• Maximum transfer distance up to 20Km

• Automatic discovery and authorization, plug and play

• AES-128 encryption

• Customized Quality of Service for assured SLA

• IEEE 802.1p priority (SP/WRR/SP+WRR)

• Advanced Layer2 switching features, IGMP Snooping, IEEE 802.1q VLAN,  Rate Limitation, MAC Address management

• Supports Dying Gasp function

• Supports Triple churning

• Remote management based on OAM, Local management through Web-based GUI

• 1* SFF/SC PON port, 1* 10/100/1000Mbps auto-negotiation and auto-MDI/MDIX RJ45 LAN port

Hardware

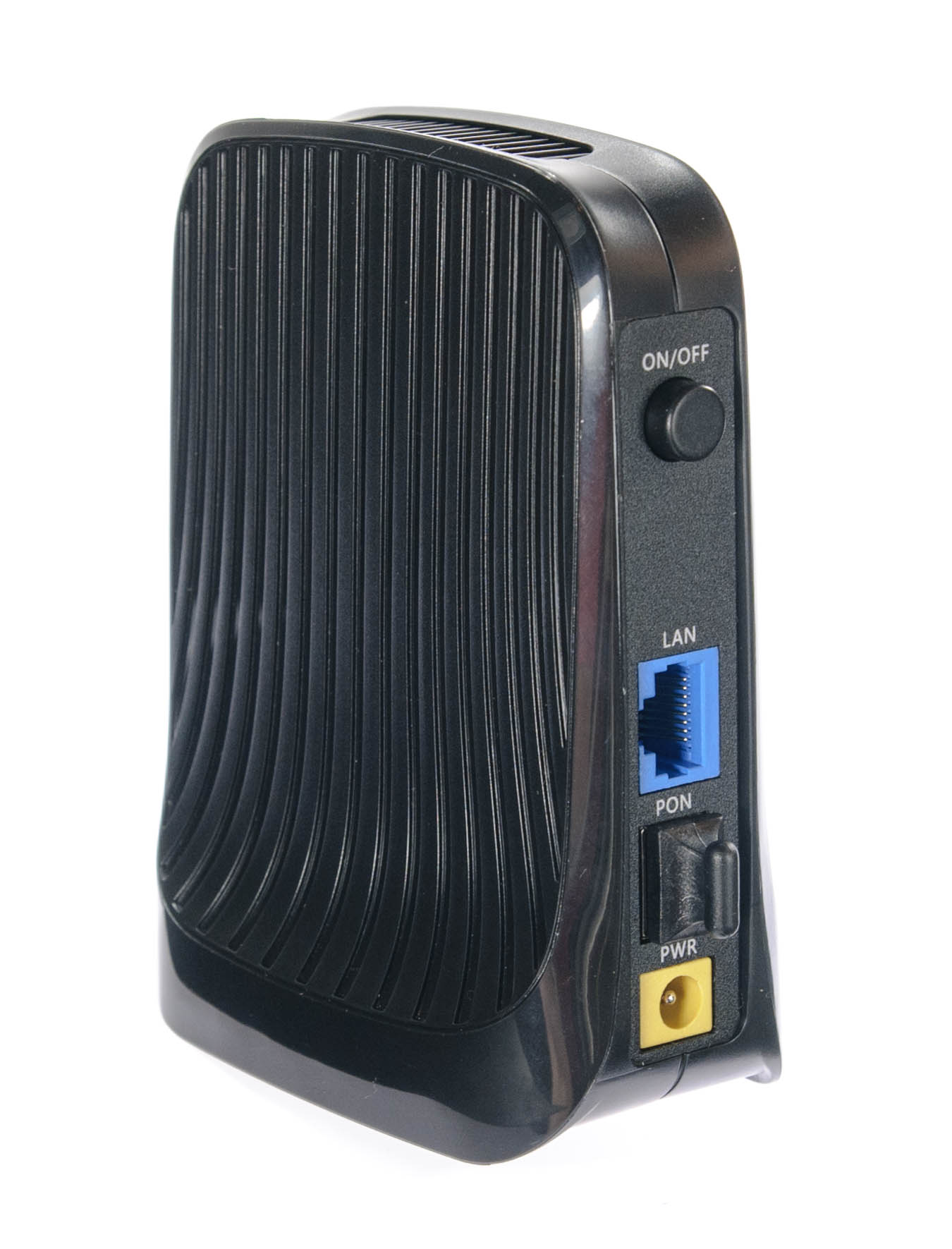

Interface	1* SFF/SC PON port 1* 10/100/1000Mbps auto-negotiation and MDI/MDIX RJ45 LAN port
Data Rate	Upstream 1.25Gbps Downstream 1.25Gbps
Distance	0-20KM
Splitting Ratio	1:32(20KM)  1:64(10KM)
Optical Power	-1~+4dBm
Receive Sensitive	-25.5dBm

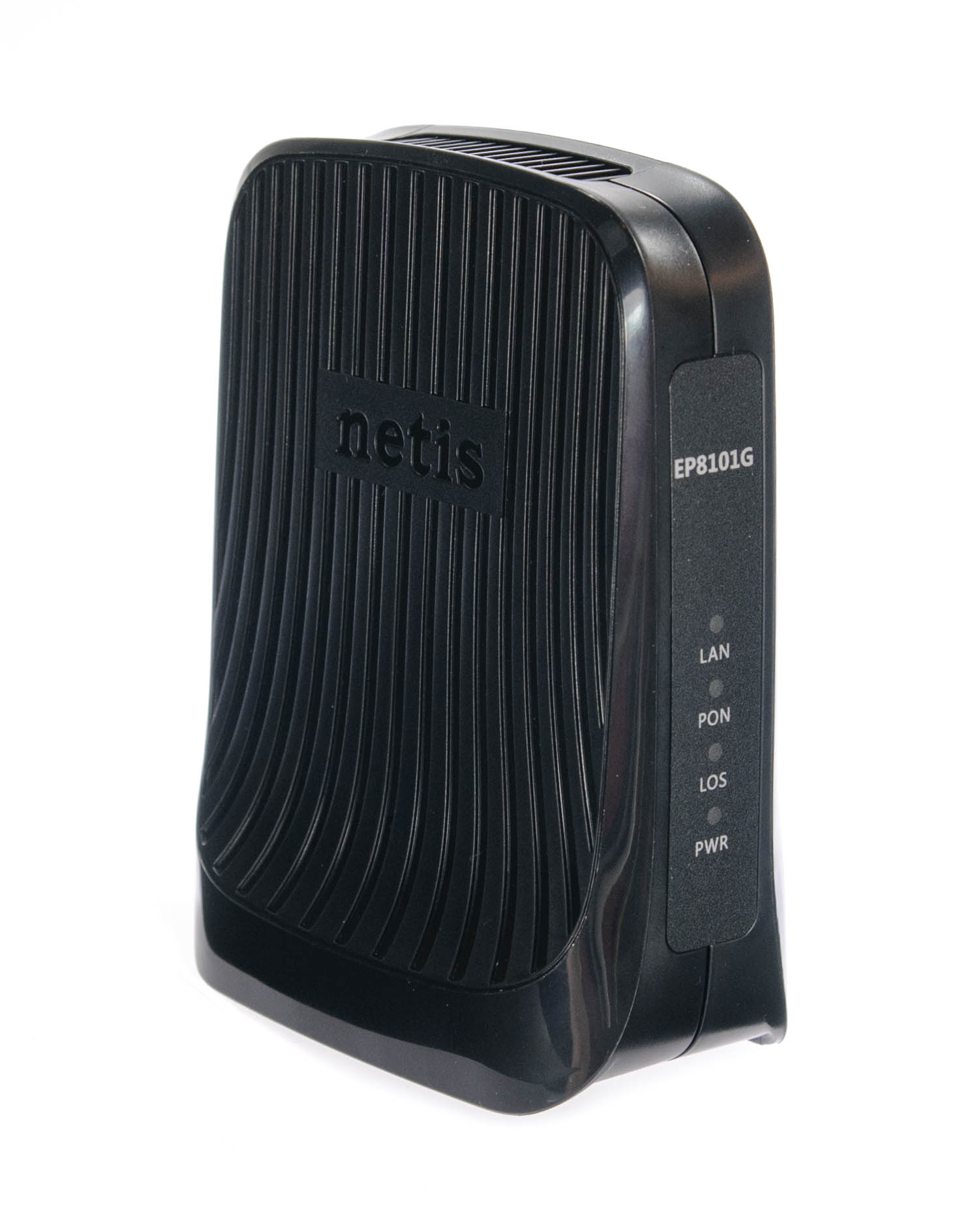

LED	LAN PON LOS PWR
Button	Power on/off Default
Power Adapter	External 9V500MA
Power consumption	<5W (MAX)
Dimensions(L x W x H )	115(L)*87.95(W)*48.5(H)mm
Weight	111g

Software
Standard	IEEE 802.3-2005, IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,  IEEE 802.3ab 1000Base-T,  IEEE 802.1p, IEEE 802.1q
QoS	Service Flow Classification based on MAC Address/VLAN/ IP Address /DSCP /L4 port, 802.3x flow control, Schedule rules Support SP/WRR/SP+WRR, Upstream Priority Label Support 802.1p User Priority, Rate Limit and Traffic shaping, Congestion Control Support Tail-Drop/WRED/RED
VLAN	802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode
Advanced Features	Authentication based on Loid and Password,or base on MAC Upstream and Downstream FEC, Dynamic Bandwidth Allocation(DBA) , Optical power detection, Dying Gasp, Terminal Silent mechanism, Ethernet port loop testing
Security	AES Encryption, Triple churning Illegal Frame/Illegal Multicast Filtering
Management	Managed by Web and OAM, Specified the management IP/MAC, Reset to Factory default by Reset button or Web UI, Real-time statistics, Optical Diagnostic, System Log
IGMP	IGMP v2/v3 IGMP Snooping

Others
Environment	Operating Temperature: 0℃~40℃(32°F~104°F) Storage Temperature: -40℃~70℃(-40°F~158°F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
Package	1 * EP8101G 1 * 9V/500MA Power Adapter 1 * Ethernet Cable 1 * Quick Installation Guide
